Description
This advanced technology feature guarantees optimum performance and high energy savings.
It starts the Air Conditioner even on 140 Volts that gives excellent energy saving experience.
Outstanding Efficiency & Electricity Savings
Flexible Electricity Consumption
3 Stages Air Filtration
Automatically Cleans the AC & Eliminates Moisture

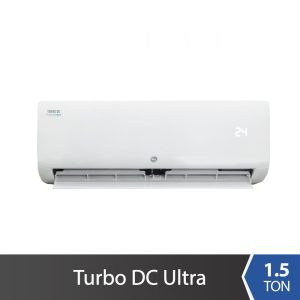

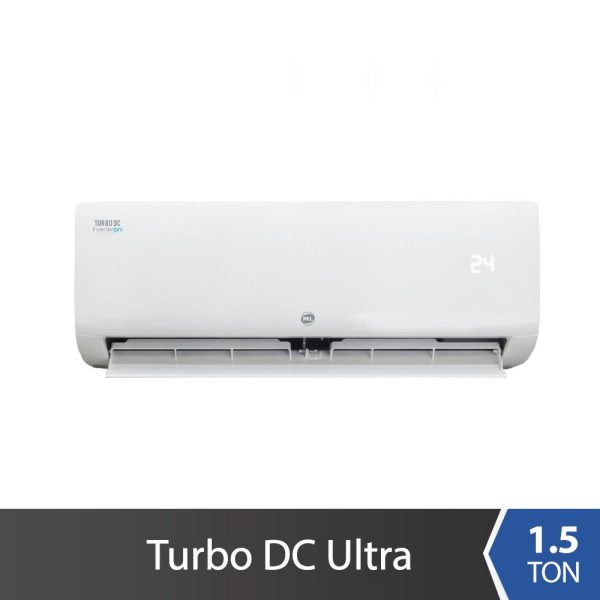

PEL Turbo DC Ultra Air Conditioner 1.5 Ton
| SPECIFICATION | 18K Turbo DC Ultra |
|---|---|
| Rated Capacity – Cooling | 5334(1200-6200) W |
| Rated Running Current – Cooling | 6.5(1.5-12) A |
| Maximum Current | 12Â A |
| Rated Power Cooling | 1470(300-2700) W |
| Maximum Power | 2700/2500 W |
| Seasonal / Energy Efficiency Ratio (SEER/EER) | 3.4 W/W |
| Power supply source | 220~240V/50Hz V/Ph/Hz |
| Refrigerant | R410a |
| Air Flow Volume | 1150 m3/h |
| Outdoor Noise level | 45/58 dB(A) |
| Indoor unit weight （Net ) | 15 Kg |
| Outdoor unit weight (Net ) | 37 Kg |
| Net Dimension – Indoor (WidthxDepthxHeight) | 969x327x235 mm |
| Net Dimension – Outdoor (WidthxDepthxHeight) | 853×602×349 mm |
| Compressor Warranty | 10 Years |
|---|---|
| PCB Kit Warranty | 05Â Years |
| Parts Warranty | 1 Year |
Split AC installation Cost:
| Description (Wall Mounted Split AC 1-2 Ton) | Tariff (PKR) |
|---|---|
| PEL Technician Installation | 3000 |
| Dismantling Charges in case of previous AC | 1300 |
| Extra Copper Pipe (RFT) | 600 |
| PVC Drain Pipe (RFT) | 120 |
| Simple Grooving without Pipe Concealing (RFT) | 120 |
| Iron Frame Charges (Powder Coated) | 1500 |
| Filling of Holes with white Plaster of Paris (RFT) | 200 |
| PVC Duct for Refrigeration pipe (RFT) | 300 |
| Additional Gas Charging (if required) **In case of more than 10ft outdoor height |
(R-22) 300 Per RFT (R410a) 500 Per RFT |
